4K/UHD Support: 4096×2160 or 3840×2160 50/60Hz at 4:4:4
18 Gbps Bandwidth: High Speed / Performance for latest HDMI standards
Active Optical Cable (AOC): Technology carries heavy TMDS HDMI channel over fiber High Dynamic Range (HDR) Format Support: HDR10 and Dolby® Vision
HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant
Audio Return Channel: Audio can be returned from display back to HDMI source
Deep Color Support: Up to 4K 24/25/30Hz 4:4:4/12 bits or 50/60Hz 4:2:0/12 bit Directional Cable: Each head contains specific handling for optimal performance
OPEN EYETM Technology: Certified & tested for 0% loss and noise-free performance Support All Digital Audio Formats: Dolby® TrueHD, Dolby® Digital Plus, Dolby® Atmos Thin & Flexible: Wiring supports tighter bend radius than traditional HDMI
Powered by HDMI: No external powering

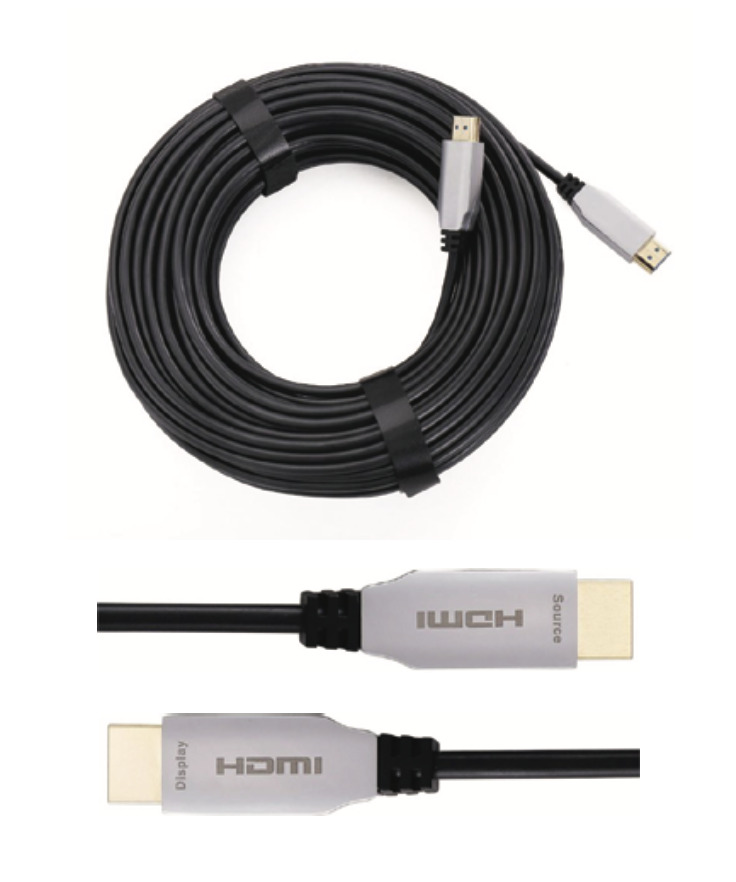

A60M-AOCINO
Cable Length
Video Input Interfaces
Video Output Interfaces
Bandwidth
Compliance
Resolutions
Signals
Audio
Power Consumption
Certifications
Notification
Operating Temperature
Storage Temperature
Humidity
Conductor
Unit weight
*Dimension and weight maybe slightly varied
60 m
1 x HDMI 19-pin Type-A Male (gold-plated)
1 x HDMI 19-pin Type-A Male (gold-plated)
18 Gbps
HDMI (Deep Color, 4K, HDR), HDCP 2.2
4096 x 2160 / 3840 x 2160 @50/60 Hz (4:4:4)
TMDS / HDCP 2.2
Dolby® TrueHD, Dolby® Digital Plus, Dolby® Atmos
5V, 0.148A, 0.63W (Max.)
CE / FCC / RoHS
Bend Radius: 6 mm (Min)
0°C to 50°C
-20°C to 70°C
0 – 85% RH, Non-Condensing
28 AWG
1.0 kg
